Cable laid slings are in a 7 x 7 x 7 wire configuration to offer more flexibility and resistance to kinking than regular wire rope. Also sometimes known as aircraft cable, it's narrow profile and pliability makes it ideal for applications that require the rope to bend easily. Cable laid slings are also galvanized to offer protection from corrosion.
Standard cable slings are manufactured in a traditional single leg design, but other fittings are available to allow for complete customization. Call our sales team to ask about thimbles, hooks, crescent thimbles, slip-through thimbles, and other options to create the custom steel strand lift sling you need.
Description
- A 7x7x7 wire rope makes a cable laid sling more flexible and resistant to kinking than traditional wire rope configuration. A galvanized finish also offers protection from corrosion.
- All of our wire rope lifting slings are manufactured with an attached metal tag displaying capacity, care, and instruction.
- Manufactured with Crosby Sleeves
- Cable laid slings are extremely flexible and offer excellent resistance to kinking.
- Cable Laid Slings are made with ultra-flexible galvanized aircraft cables for more flexibility than standard wire rope.
| Diameter | Vertical | Choker | 90°Basket | Wire rope | Type |
| 3/8" | 1.1T | 0.81T | 2.2T | 7x7x7 Galvanized EIPS IWRC | Cable Laid Eye and Eye |
| 1/2" | 1.9T | 1.4T | 3.8T | 7x7x7 Galvanized EIPS IWRC | Cable Laid Eye and Eye |
| 5/8" | 2.8T | 2.1T | 5.6T | 7x7x7 Galvanized EIPS IWRC | Cable Laid Eye and Eye |
| 3/4" | 4.1T | 3.0T | 8.2T | 7x7x7 Galvanized EIPS IWRC | Cable Laid Eye and Eye |
| 7/8" | 5.4T | 4T | 11T | 7x7x7 Galvanized EIPS IWRC | Cable Laid Eye and Eye |
| 1" | 6.9T | 5.1T | 14T | 7x7x7 Galvanized EIPS IWRC | Cable Laid Eye and Eye |
How to Calculate the Length of a Wire Rope Sling?
Wire rope bridles are measured by the length of the sling leg only. The length of the oblong master and eye hooks should not be included in the overall measurement.
Our slings are available in a variety of lengths, but can also be customized to any length you need.
Sling Proof Testing Certificates
Proof testing certificates can be supplied with your order for a nominal fee and must be requested at the time of order. Proof tests are performed in the factory where the sling is pull tested to 2x the vertical rating and officially recorded as proof for governing bodies. During the standard manufacturing process, only random slings during a production run are tested for compliance; in order to provide proof testing certificates with your order, every sling must be pull tested at the time of manufacture.
All of our wire rope lifting slings are inspected, certified and tagged with metal tags displaying capacity, care, and instructions.

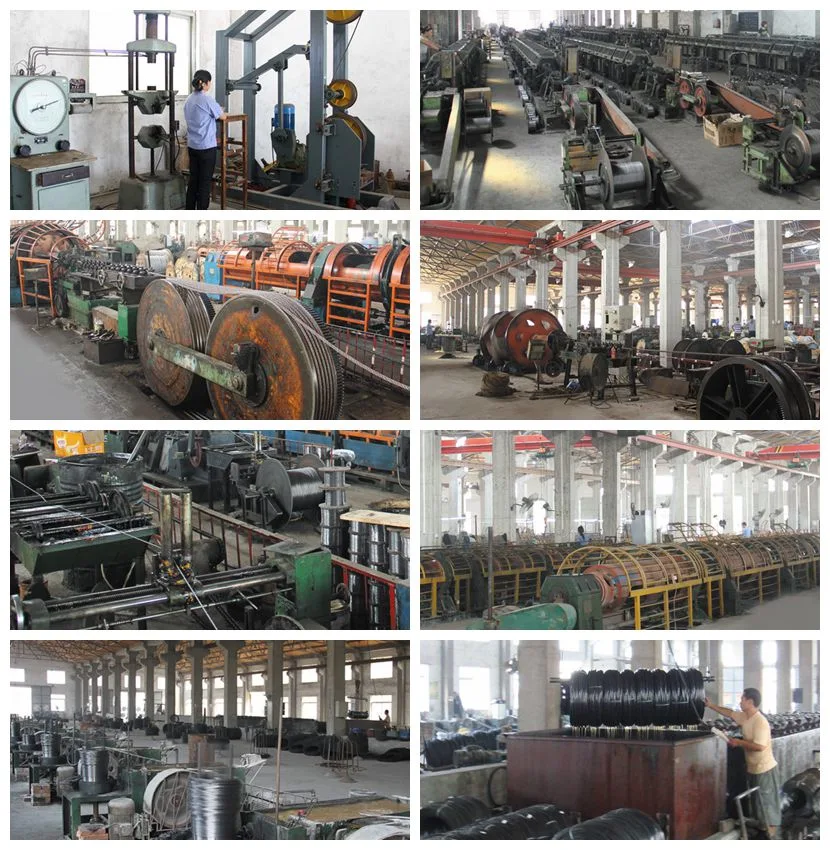

PRODUCTION
STORAGE
TRANSPORTATION
In ordering a wire rope sling be sure to give complete information including length,diameter,construction,lay,core.
Length:state the exact length desired.In ordering end fittings such as thimbles,links or hooks spliced in,give exact length from bearing to bearing or end rope,or submit a sketch with dimensions.
Diameter:the true diameter of a wire rope is the diameter of a circle which will enclose it.In using the caliper to determine the diameter,be careful to avoid measuring across the adjacent strands.
Construction:advice whether 6X19,6X37,7X19 or other.
Lay:state definitely whether regular(right hanad or left hand).or lang lay(right hanad or left hand)is required;if it is uncertain,consult with us.Standard practice is to furnish Right Hand Regular(ordinary)Lay.But if left hand Regular(ordinary)Lay is required for cable tool drilling or some other purpose,be sure to state.
Core:indicate whether fiber core(FC)or independent wire rope core is desired.
