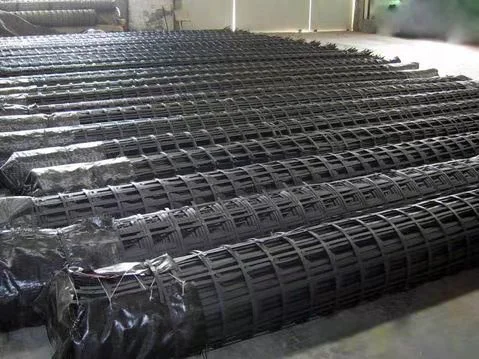

Bitumen Coated self ashesive fiberglass geogrid
1. A kind of planar mesh material using alkali-free fiberglass yarn as base body,the coated with high quality modified asphalt
2. Warp knitted with directional structure,which gives full play of yarn strength and improves its mechanical property to make the product high tensile,tearing and creep-resistant.
3. Coated with asphalt making full protection of the fiberglass matrix and greatly improving its wear and shear resistantance.
4. Having a good performance in pavement strengthening,track cracking and solving difficulties of strengthening the bituminous pavement.
1.Maintenance of old asphalt road reinforcement of asphalt pavement.
2. Converting old cement concrete road into composite road.
3. Restraining reflection cracking caused by block shrinkage.
4. Preventing and controlling the cracking caused by new and old combination and uneven settlement.
5. Road extension.
6. Reinforcement of soft soil foundation and overall strength of roadbed.
1. Light weight, high tensile strength, high modulus,low elongation and good toughness.
2. Coeeosion resistance, no long-term creep,long life span.
3. Good physical and chemical stability and good thermal stability.
4. Resistant to fatigue cracking, high-temperature track and low temperature shrinkage cracking.
5 Delaying and decreasing crack reflectio
1It reinforces old asphalt concrete road surface and asphalt layer,and prevents damage.
2It is used for rebuilding cement concrete road surface into composite road surface and restraining reflection caused by block contraction
3Ii is used in road expansion and imnprovement project anby foud crack caused by old and new combination position and uneven
4It is used in soft soil base reinforcement treatment,which is favorable for soft soil water separation and concretion,restrains
sedimentation effectively,distributes stress uniformly an improve overall strength of road base.
5.It is used for preventing contraction crack caused by new road semi-rigid base layer,and reinforces and prevents road surface crack
caused by foundation crack reflection.
The Specification of PP Plastic Biaxial Geogrid 30/30 Kn with 35mm Mesh Size
|Index Properties||Test Method||Unit||MD Values||TD Values|
|Minimum Carbon Black||ASTM D 4218||%||2||-|
|Tensile Strength @ 2% Strain||ASTM D 6637||kN/m||14||14|
|Tensile Strength @ 5% Strain||ASTM D 6637||kN/m||28||28|
|Ultimate Tensile Strength||ASTM D 6637||kN/m||40||40|
|Strain @ Ultimate Strength||ASTM D 6637||%||13||13|
|Junction Effciency||GRI GG2||%||93||93|
|Flexural Rigidity||ASTM D 7748||mg-cm||4,800,000||-|
|Aperture Stability||ASTM D 7864||m-N/deg||0.98||-|
